Focus-one/One-touch Meter A
“Place-and-Press” OMMs

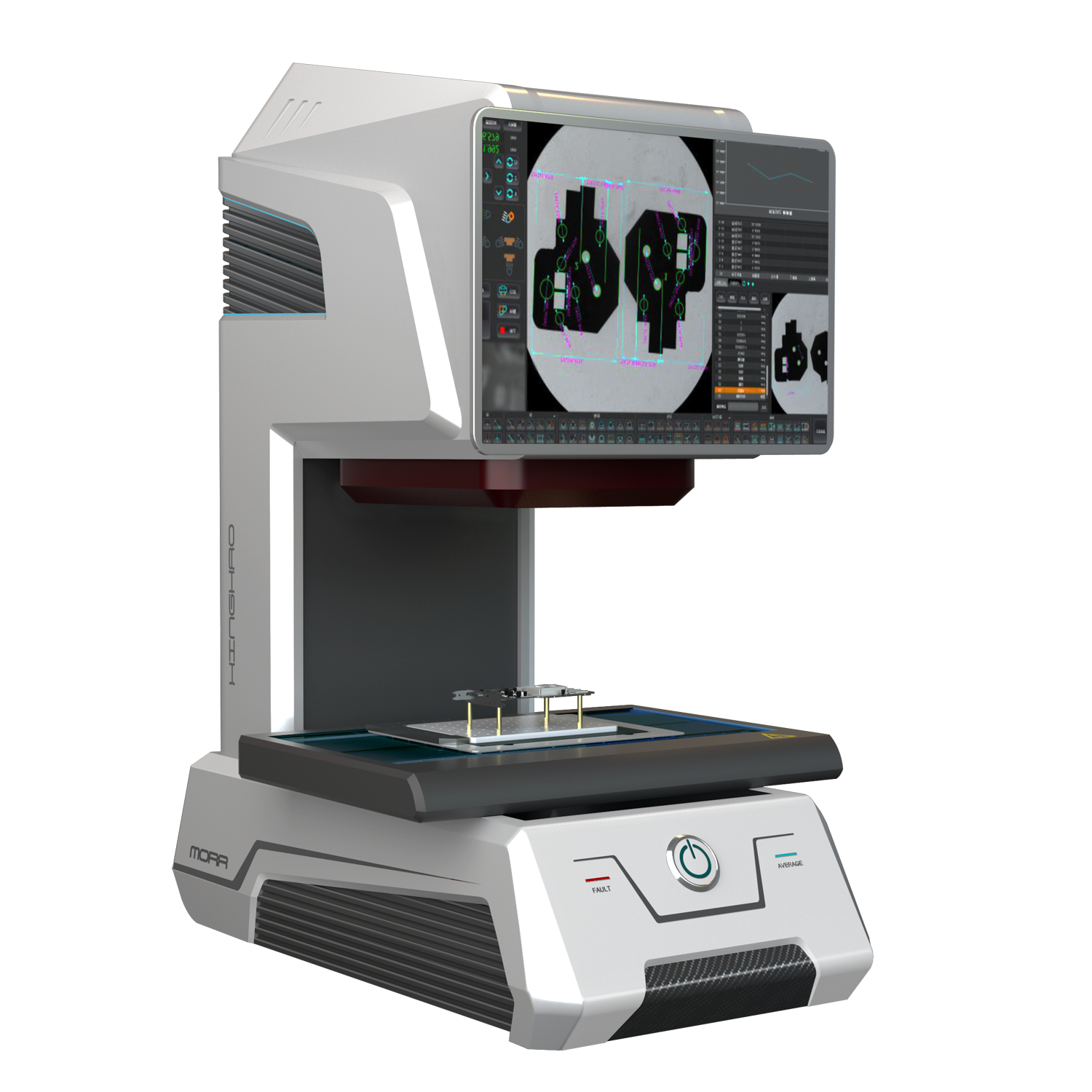

Focus-one/One-touch Meter A
Product Overview

One-click flash measurement, efficient batch measurement.

Key Features

●No positioning is required for measuring products, the software automatically identifies and matches templates

●Multiple parts and targets can be measured simultaneously

●Support CAD import, one-click matching measurement efficiency for batch measurement

●One-click generation of measurement reports

Related parameters and technical indicators
XY axis measuring range (mm) 180*60*70
Single field of view measurement range (mm) 80*60
External dimensions (mm) 600*600*800
Weight(kg) 60
Load-bearing(kg) 15
Image Sensor 20 megapixel industrial camera
Lenses Bi-telecentric optical lens
Magnification 0.109X
Measuring accuracy (μm) ±(3.0+L/200)* Taking the standard block as the product under test
Depth of field (mm) 37
Z axis working distance (mm) 120mm
light source 1000-level programmable light source
Contour light: telecentric parallel light source
Surface light: Ring light source
Work Environment Temperature: 22℃±3℃ Humidity: 50~70%
Vibration: <0.002mm/s, <15Hz
power supply 220V/50Hz
After-sales service
Provide professional and efficient after-sales service to ensure stable operation of equipment and customer satisfaction
