Rotarus Series / Grid Series
Gear Measuring Center
Rotarus Series / Grid Series
Product Overview

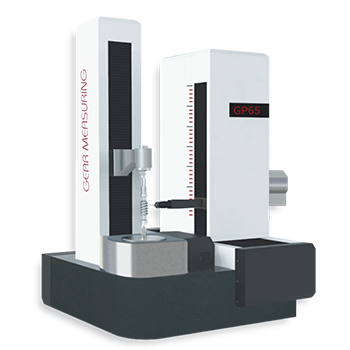

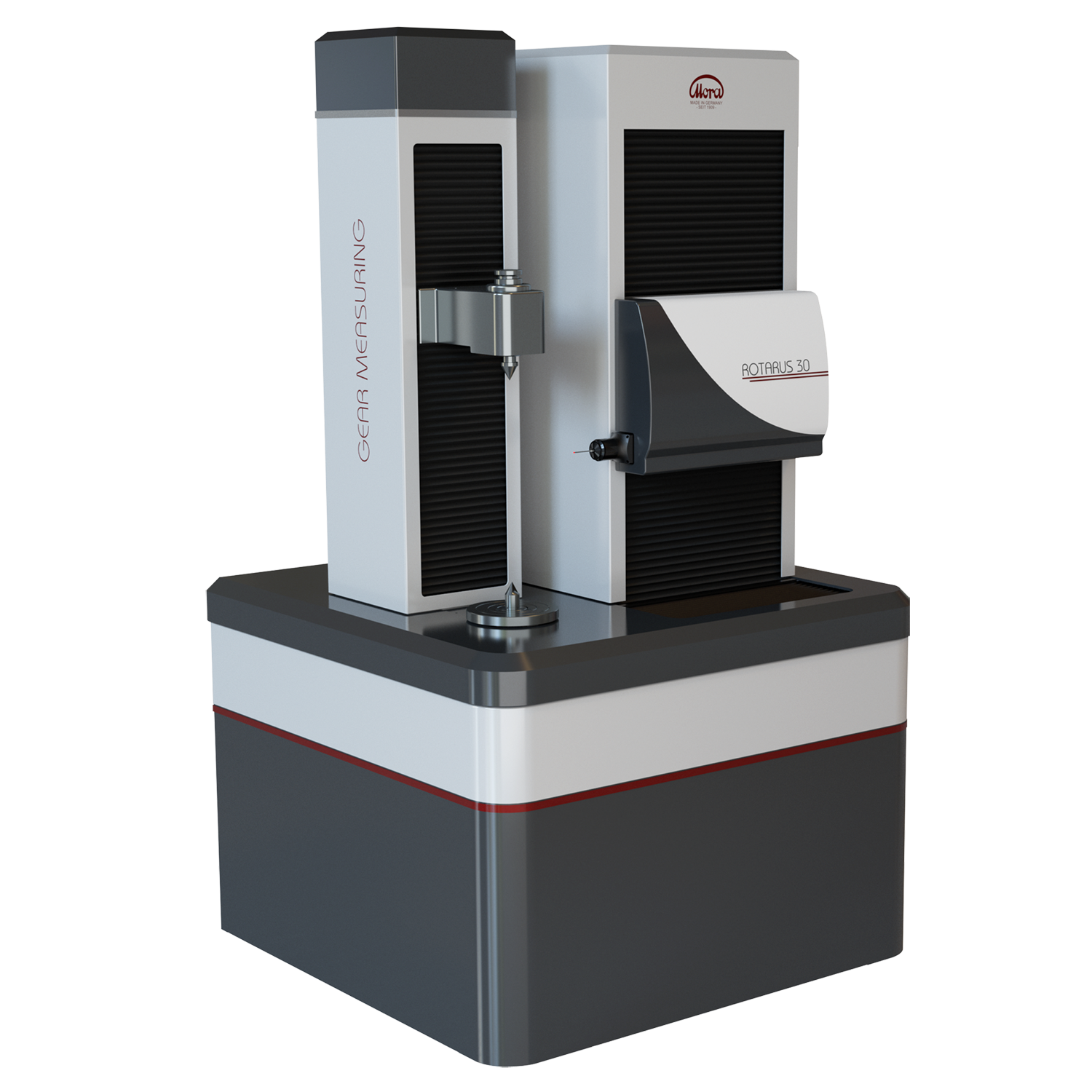

The Rotarus series gear measuring center is a new generation of gear measuring instruments launched by Edwards Group. It has advanced design concepts and introduced German technology. Its accuracy and precision stability are domestically leading and internationally advanced. It has a stable structure and is easy to maintain. It is especially suitable for professional gear testing departments, metrology rooms and scientific research departments.

Related parameters and technical indicators
            model 30 45 65 80 100 120
            Measurable modulus range 0.5~10 0.5~15 0.5~20 0.5~20 0.5~30 0.5~40
            Maximum outer diameter of workpiece (mm) 300 450 650 800 1000 1200
            Top and bottom distance (mm) 10~500 10~800 10~1000 10~1000 10~1000 10~1000
            Vertical measuring range(mm) )400 400 600 600 800 800
            Measurable helix angle° 0~90
            Maximum workpiece weight kg 100 300 500 1000 2000 3000
            Instrument dimensions(mm)     X 1800 1800 2400 2500 2900 3000
   Y 1300 1300 1600 1600 2400 2400
   Z 2100 2400 2400 2500 3000 3000
            Gas consumptionL/min 50 50 55 55 60 60
            Instrument weightkg 1500 2800 4000 4500 9500 10500
            Environmental requirements    Compressed air Gas supply pressure 6~8bar, working pressure 4.5~5bar
Temperature and humidity 20土2℃、<0.5℃/H、<0.5℃/M
power supply AC220V、50/60Hz、20KVA
