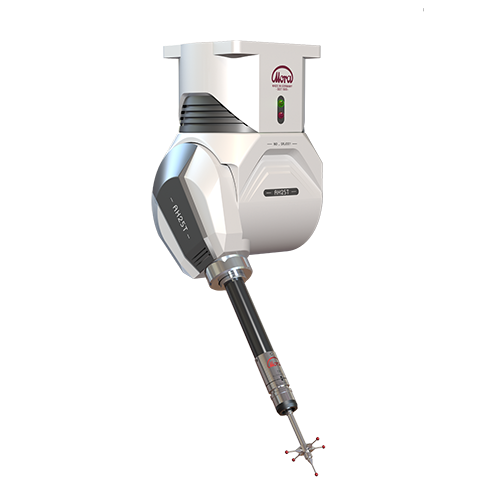

AH25T/AH50T motorized dual rotation probe headr
Product Overview
AH25T/AH50T automatic dual-rotation measuring head, two rotation axis design - A axis and B axis, servo motor drive, angle step 2.5 degrees/5 degrees. Adopting the industry's universal standard design, it is easy to install. In addition, it also has an anti-collision protection device to protect the equipment when the machine collides, and the ultra-small distribution step brings more convenience to measurement.
Related parameters and technical indicators
| Rotation angle and angle increment | A axis ±115° |
| Angle increments 2.5°/5° | |
| B axis ±180° | |
| Angle increments 2.5°/5° | |
| Two axis locking | Motor locking |
| Installation | Base installation |
| Measurement status indication | 1LED灯 |
| Maximum output torque | 0.45Nm |
| Maximum extension rod length | 300mm |
| Operating temperature | +10°～+40°C |
| Storage temperature | -10° ～+50 °C |
| Probe interface | M8 thread |
| Measuring accessories | TP20/TD |
| quality | 980g |
| Replacement options | ATD2 6 stations |

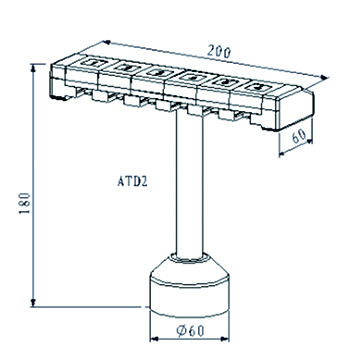

Dimensions reference diagram
Automatically change icons
