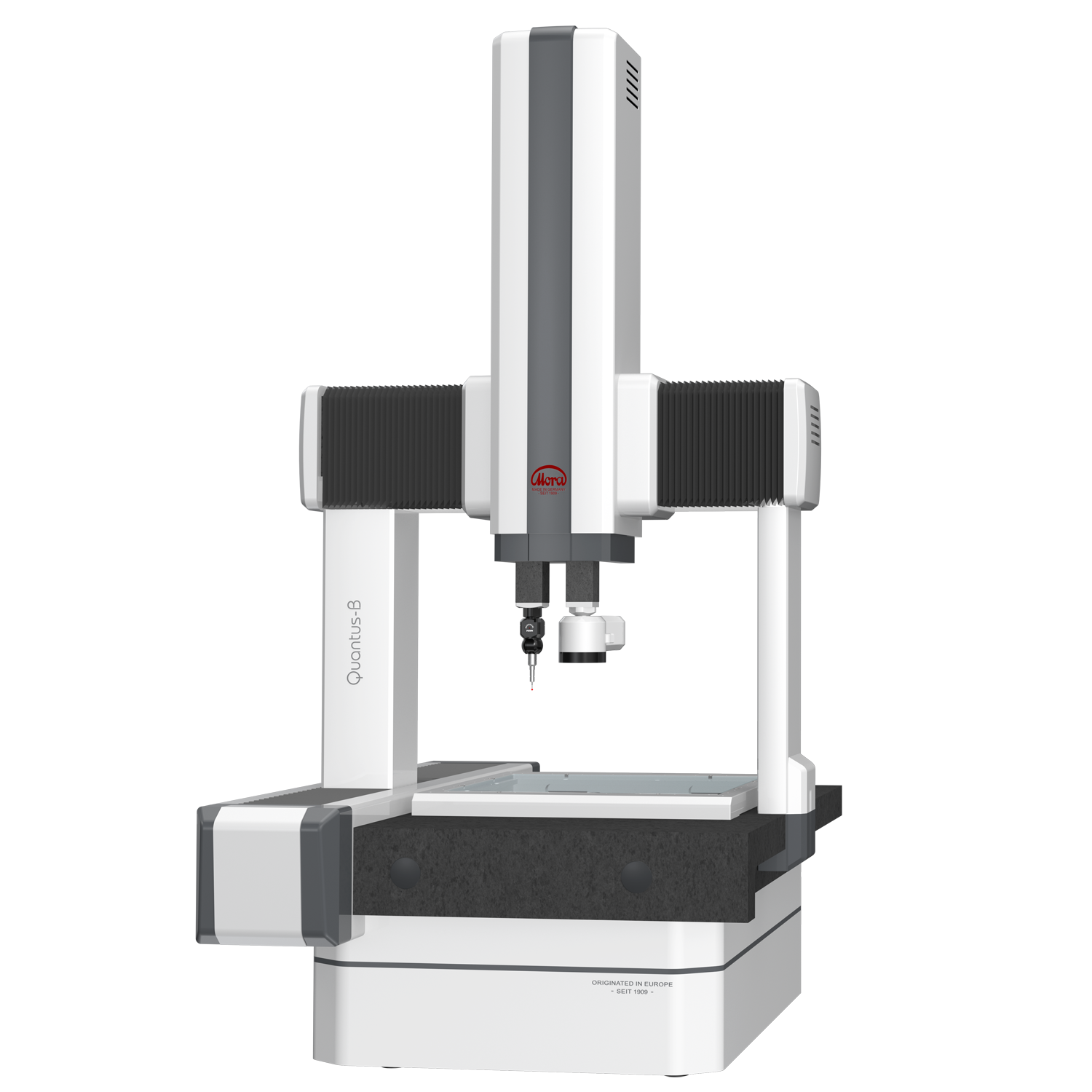

●This series of products uses a large number of the company's patented technologies, including: precision "L" beam technology, air bearing technology (ZL200710017322.7), X-axis rigidity improvement technology (ZL201220136748.0), transmission belt tension unloading technology (ZL201220247838.7), temperature display technology (ZL201220506263.6). These patented technologies are used on different types of measuring machines to improve the overall performance of the equipment;
●The synchronous toothed belt adopts LongLength PowerChina. This product is manufactured using internationally advanced technology and uses Kevlar fiber instead of steel wire as the toothed belt stress layer, which improves the flexibility of the belt and the tensile strength of the toothed belt. At the same time, the involute tooth profile is used instead of the arc tooth profile to make the transmission smoother;
● The Z-axis balancing cylinder uses a rod-type balancing cylinder, which is safer and more reliable than the rope-type cylinder;
● Most of the protective covers of this series of measuring machines are made of bent and welded aluminum plates, which are light in weight, improve the dynamic performance of the equipment, and are green and environmentally friendly;
● This series of measuring machines has been launched for many years. After feedback from many users and continuous improvements, the current technical performance and long-term stability of the measuring machines are better than similar products.
| Standard Model | Measuring range(mm) | Dimensions (mm) | Resolution(μm) | Detection error R(μm) | Indication error E (μm) |
Workbench | Maximum load-bearing capacity | Machine weight(kg) | |||||
| Dx | Dy | Dz | Lx | Ly | Lz | ||||||||
| Quantus-B 575 | 500 | 700 | 500 | 1480 | 1720 | 2640 | From 0.05 | 1.7 | 1.7+L/300 | 800 | 1500 | ||
| Quantus-B 7107 | 700 | 1000 | 700 | 1680 | 2020 | 3040 | From 0.05 | 1.9 | 1.9+L/300 | 1000 | 2000 | ||
| Quantus-B 10128 | 1000 | 1200 | 800 | 2180 | 2380 | 3325 | From 0.05 | 2.3 | 2.3+L/300 | 1500 | 3350 | ||
| Quantus-B 121510 | 1200 | 1500 | 1000 | 2380 | 2680 | 3725 | From 0.05 | 2.7 | 2.7+L/300 | 2000 | 4350 | ||
