AH-SD3 3D digital scanning probe
Probe System
AH-SD3 3D digital scanning probe
Product Overview

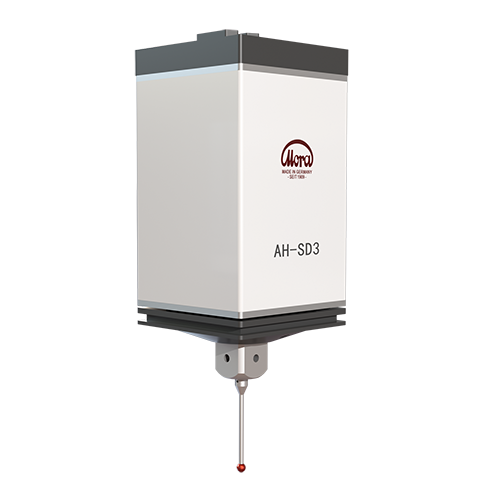

AH-SD3 is a high-precision scanning probe with a wide range and can move linearly and horizontally on all axes. The three-axis high-precision digital sensor has a large range and strong anti-interference ability. The self-balancing structure of the probe needle can continuously collect data even when the probe needle is lengthened, and the load capacity is outstanding. The probe replacement tray has a dual-stable magnetic protection system, which is easy to clamp and has reliable collision protection. It is durable and the stable design can withstand minor collisions.

Related parameters and technical indicators
Features Fixed, contact high-speed 3D scanning probe
Probe travel Three axis ±2.5㎜
Resolution 0.1μm
Force coefficient 1.5N/㎜
Probe Thread: M5
Maximum length: 500mm
Maximum weight: 300g
Installation Spindle end face installation
How to use Vertical use
Electrical Connections 15-pin DB connector
Measurement status indication 1LED light
Operating temperature +10°~+40°C
Storage temperature -10°~ +50 °C
Working life ≥10000 hours
Dimensions 80㎜×80㎜×175㎜
quality 960g

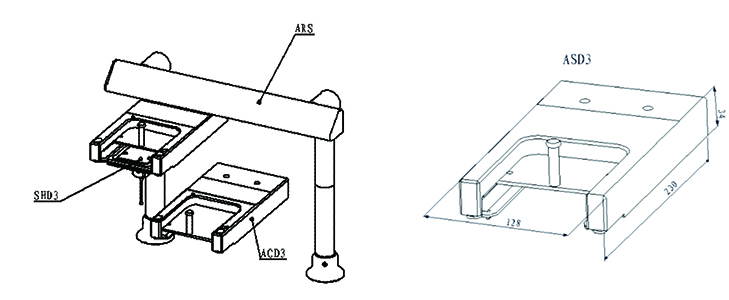

Replacement options ACD3 replacement module, ARS bracket

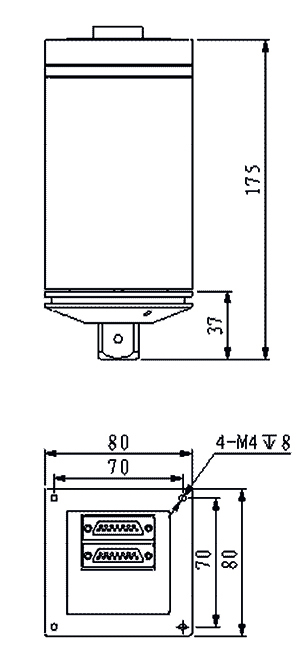

Dimensions reference diagram

Automatically change icons

After-sales service
Provide professional and efficient after-sales service to ensure stable operation of equipment and customer satisfaction
