Primus/Legend high-precision measuring machine series
It is a three-coordinate measuring machine with multiple patents launched to the market by Mora, a German company, with its century-old technical strength and rigorous manufacturing process.
Primus is the machine model of this series in the international market. Legend is the machine model of this series in the Chinese market.
|
Standard Model |
Measuring range ( mm) X/Width×Y/Length×Z/Height |
Dimensions( mm) |
Accuracy (μm) |
Weight (kg) |
|||
|
Lx |
Ly |
Lz |
TD |
||||
|
Primus575 |
Legend 575 |
500×700×500 |
1330 |
1720 |
2640 |
1.7+L/300 |
1500 |
|

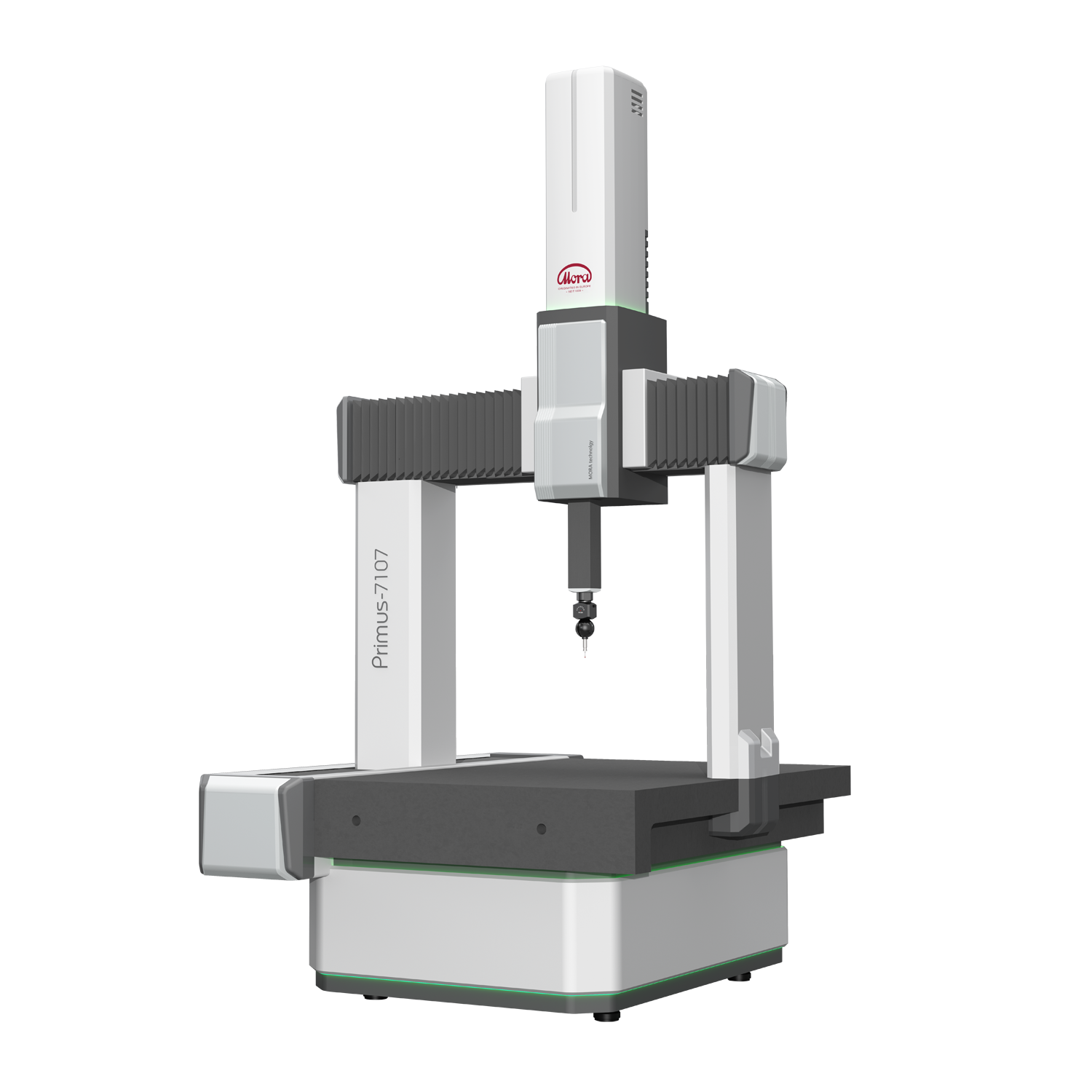

Primus 7107 |
Legend 7107 |
700×1000×700 |
1530 |
2020 |
3040 |
1.9+L/300 |
2000 |
|
Primus 10128 |
Legend 10128 |
1000×1200×800 |
1980 |
2380 |
3325 |
2.3+L/300 |
3350 |
|
Primus 10158 |
Legend 10158 |
1000×1500×800 |
1980 |
2680 |
3325 |
3800 |
|
|
Primus 10208 |
Legend 10208 |
1000×2000×800 |
1980 |
3180 |
3325 |
4550 |
|
|
Primus 10258 |
Legend 10258 |
1000×2500×800 |
1980 |
3680 |
3325 |
5980 |
|
|
Primus 121510 |
Legend 121510 |
1200×1500×1000 |
2180 |
2680 |
3725 |
2.7+L/300 |
4350 |
|
Primus 122010 |
Legend 122010 |
1200×2000×1000 |
2180 |
3180 |
3725 |
5080 |
|
|
Primus 122510 |
Legend 122510 |
1200×2500×1000 |
2180 |
3680 |
3725 |
6730 |
|
|
Primus 152012 |
Legend 152012 |
1500×2000×1200 |
2480 |
3180 |
4125 |
3.4+L/300 |
5530 |
|
Primus 152512 |
Legend 152512 |
1500×2500×1200 |
2480 |
3680 |
4125 |
7800 |
|
1 The accuracy given in the table is the accuracy when equipped with conventional trigger probes such as TD and TP20.
2 The measurement accuracy can be improved by choosing different probes. When equipped with scanning probes such as SP25 and SP80, the accuracy can be improved by about 0.5~1μm.
3 The CMM is equipped with a temperature compensation system as standard. According to the size of the machine and the reasonable layout of temperature sensors, it actively corrects and compensates for the accuracy loss caused by the change of the ambient temperature in real time, realizing the measurement application scenario of "warm in winter and cool in summer".
4 The maximum load-bearing capacity of the workbench can be increased by adding support points.
