Quantus-W/UG-W
Composite dual-Z-axis multi-sensor Measuring Machi

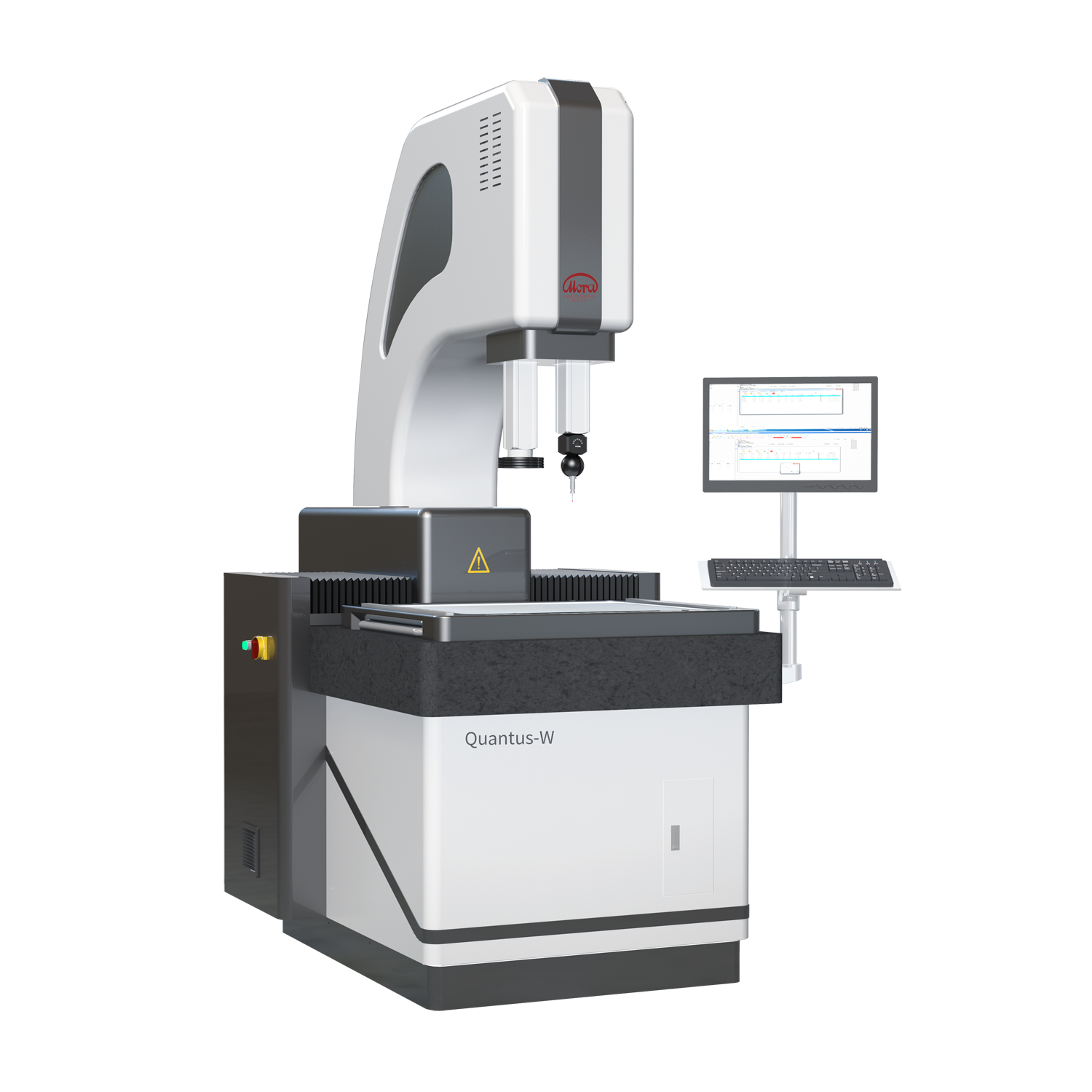

Quantus-W/UG-W
Key Features

●Integrated design of mechanical body, control system, computer, etc.

●Adopts precision linear guide rails with high guide rail rigidity;

●Precision ball screw transmission with good transmission rigidity;

●Compact structure, Z axis can be moved to the space outside the workbench, and the operating space is wide;

●Contact measurement and non-contact measurement are integrated to meet various measurement requirements;

●Adopts the latest reflective film technology, no bottom light is required. It can meet the requirements of non-contact measurement;

●Removable glass workbench, when using contact measurement of large parts, the glass workbench can be removed and the parts can be fixed on the granite table;

●Tempered glass is used for strong load-bearing capacity;

●Temperature correction module and 21 error correction modules ensure its measurement accuracy;

●Adapts to harsh workshop environment and is easy to move, providing convenience and flexibility for workshop site use;

●Can be equipped with industrial manipulators to complete automatic loading and unloading of workpieces;

●Replaces air-floating guide rails, increases the operating life of equipment, and reduces maintenance costs.

Related parameters and technical indicators
Standard Model Measuring range(mm) Dimensions (mm) Resolution(μm) Detection error R(μm) Indication error E(μm)   Workbench Maximum load-bearing capacity(kg) Machine weight
(kg)
Dx Dy Dz Lx Ly Lz
Quantus-W 654 600 500 400 1200 1800 2400 From 0.05 3.5 3.8+L/200 400/40 850
