Composite dual-Z-axis multi-sensor Measuring Machi
Quantus/UG
Product Overview

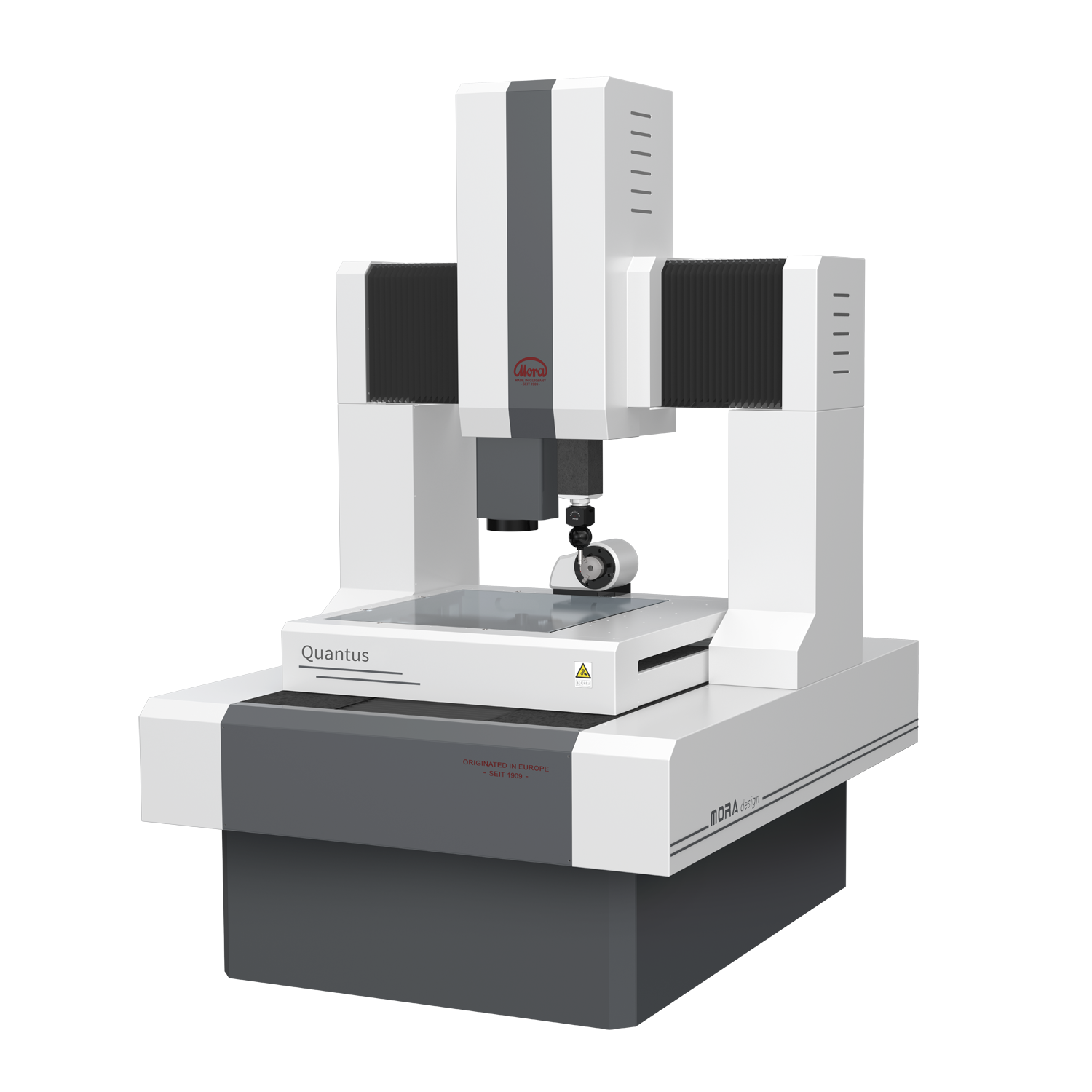

The dual Z-axis design makes it easy to combine different sensors and measure the same workpiece with different probe sensors in the same coordinate system.

Key Features

●The fixed bridge structure with good rigidity has the advantages of high precision, high performance and high stability;

●All ​​four axes adopt precision ball screw transmission, which has the characteristics of high rigidity, small backlash and high transmission accuracy;

●Adopt high-quality granite air bearing guide structure, with small thermal expansion coefficient, high guiding accuracy and smooth operation;

●The Y-axis adopts dovetail air floating guide design, which has strong torsional strength in X and Z directions;

●The Z-axis adopts the air floating sleeve structure with unique patented technology, with small bias torque and smooth movement;

●The grating ruler adopts imported high-precision slot-type grating ruler;

●Equipped with 5-ring 8-zone four-color ring light source, contour light source, coaxial light source, controllable light source system, intelligent light source brightness adjustment.

Related parameters and technical indicators
Axis X/Width Y/long Z/high
From 500 400 300
Arrive 1000 600 400



Accuracy: XYE2=0.8+L/500 onwards ZE1=0.9+L/500 onwards

The accuracy shown here is obtained at the minimum measuring range and an ambient temperature of 20°C.

Special sizes and special accuracies can also be achieved according to customer requirements.

After-sales service
Provide professional and efficient after-sales service to ensure stable operation of equipment and customer satisfaction
